Wide-Temperature Operation for a 0.78-Inch OLED in Industrial HMI Panels
Industrial HMI panels are installed where the temperature is decided by the building, not the engineer, so the display has to work from a cold start in an unheated cabinet to a warm soak inside a sealed enclosure. A 0.78-inch monochrome OLED with a 128x80 resolution and an SPI interface, rated for a wide operating temperature range that extends down to -40°C, is a sensible choice for that envelope, but the rating is only useful if the surrounding design respects it. The panel, the regulator, the connector and the contrast behaviour all shift with temperature, and the design has to account for each.

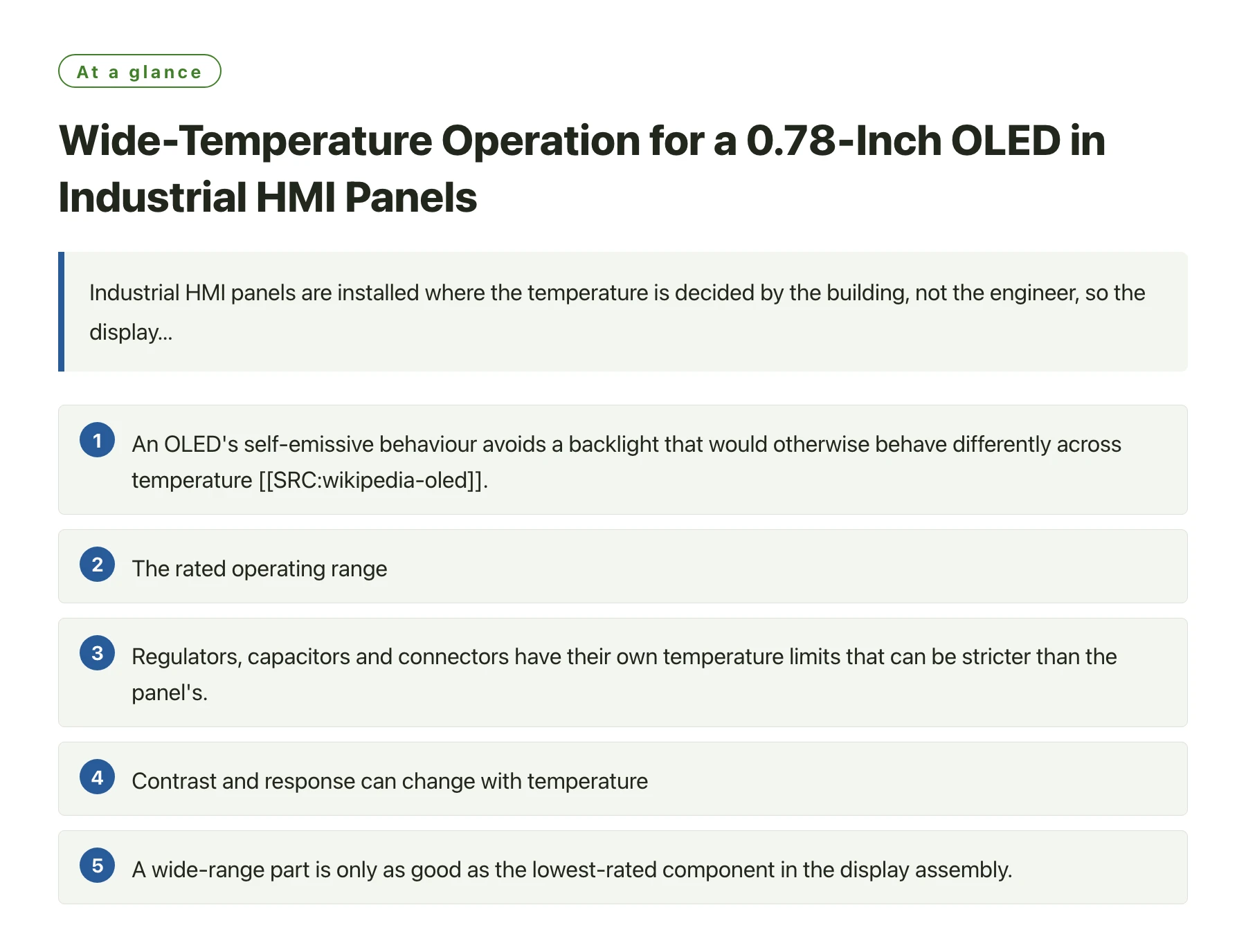

Key takeaways
- An OLED's self-emissive behaviour avoids a backlight that would otherwise behave differently across temperature [1].
- The rated operating range, here extending to -40°C, defines the envelope the whole assembly must respect [2].
- Regulators, capacitors and connectors have their own temperature limits that can be stricter than the panel's.
- Contrast and response can change with temperature, so the UI and the warm-up behaviour deserve a check at the extremes.
- A wide-range part is only as good as the lowest-rated component in the display assembly.
Industrial environments are unforgiving about temperature. A panel rated for a comfortable office range will fail in a freezer-side cabinet or a sun-baked enclosure, and the failure is rarely the panel alone. The whole assembly, from the regulator to the connector, has to live in the same envelope the application demands.
A small monochrome OLED helps because it is self-emissive and avoids the temperature-dependent backlight behaviour of transmissive displays. With a wide operating range that reaches down to -40°C, it is a credible part for harsh installations, provided the design does not undermine that rating with a weaker component elsewhere.
This article treats the temperature rating as a system envelope, shows where the real limits hide, and explains what to verify at the cold and hot ends before the panel goes into the field.
The rating is an envelope, not a feature
A wide operating temperature range is meaningful only if every component around the panel shares it. A regulator that quits at -20°C, a capacitor that drifts out of tolerance when hot, or a connector that cracks in the cold will fail the installation long before the OLED does.
The discipline is to read the rating as the ceiling and floor for the assembly, then select the supporting parts to match. The panel's -40°C lower bound is a headroom the rest of the design must not waste with a weaker link.
This is why a wide-range display is specified as a system property in procurement, not as a single number on the panel datasheet. The number sets the target; the bill of materials has to meet it.
Where temperature bites the assembly
| Component | Cold risk | Hot risk |
|---|---|---|
| Panel | Slower response, contrast shift | Accelerated wear if overdriven |
| Regulator | Start-up dropout | Efficiency loss, heat |
| Capacitors | Reduced capacitance | Ripple and life loss |
| Connector | Brittleness | Creep and contact drift |
| Cable | Stiffness, cracking | Softening, fatigue |
Verify the extremes, not the average
Most of an installation's life may be near room temperature, but the unit will be powered on at the cold extreme and left running at the hot one. Those two conditions are where startup and soak behaviour must be confirmed, because a panel that works at 25°C can still misbehave at -40°C power-up.
At the cold end, check that the init sequence and the first images are stable and that any warm-up does not produce visible lag. At the hot end, confirm the regulator stays in specification and the panel is not being overdriven in a way that shortens life.
DisplayModule lists the operating envelope for this 0.78-inch module on its product page, and that envelope is the reference the surrounding bill of materials should be checked against.
A practical check that catches most surprises is to power the panel from a cold start and watch the first images rather than assuming the init sequence behaves as it does at room temperature. Cold silicon and cold glass change how the driver settles, and a panel that is stable at twenty-five degrees can show lag or uneven segments on the first frames at minus forty. Building that cold-start check into acceptance testing, and repeating it after any bill-of-materials change, keeps the temperature rating meaningful instead of decorative. The same discipline applies at the hot end, where sustained soak should be confirmed rather than inferred from the panel's rating alone.
Match every supporting part to the panel's -40°C-to-hot envelope. A wide-range OLED is only as reliable as the lowest-rated component in the display assembly.
Sources
Frequently asked questions
Why does the OLED help in wide-temperature use?
Being self-emissive, it avoids a backlight whose behaviour and life vary strongly with temperature, which removes one temperature-sensitive subsystem from the design.
Is -40°C the only number that matters?
No, it is the lower bound given. The upper end and the soak behaviour matter just as much, and the supporting parts must match the whole envelope, not just the cold extreme.
What fails first in cold industrial panels?
Often a regulator, capacitor or connector rated narrower than the panel. The display rating is only useful if the assembly around it shares the same envelope.
Should I test at the extremes?
Yes. Confirm stable startup at the cold end and stable regulation and non-overdrive at the hot end, because behaviour at 25°C does not predict the field extremes.
